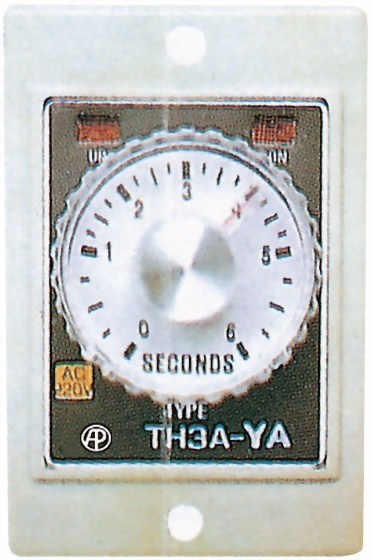

TH3A-Y Timer (Flush Type)

Model : TH3A-YA, TH3A-YB, TH3A-YC

Miniature High Performance IC Timer

OUTPUT CAPACITY:

MODEL

TH3A-NA

TH3A-NB

TH3A-NC

1C DELAY

250V 3A


250V 3A

2C DELAY


250V 3A


1A INTANT

250V 1A



VOLTAGE:

DC(V):12, 24

AC(V):12, 24, 110, 120, 220, 240, 346, 380, 415, 440

TIMER RANGE:

SEC.

MIN.

HR.

0 - 1 (S)



0 - 3 (S)

0 - 3 (M)

0 - 3 (H)

0 - 6 (S)

0 - 6 (M)

0 - 6 (H)

0 - 12 (S)

0 - 12 (M)

0 - 12 (H)

0 - 30 (S)

0 - 30 (M)

0 - 30 (H)

0 - 60 (S)

0 - 60 (M)

0 - 60 (H)

ACCURACY:

REPETITION ERROR

+/- 1% MAX

SETTING ERROR

+/- 10% MAX

EFFECT OF VOLTAGE

+/- 1% MAX

EFFECT OF TEMP

+/- 2% MAX

RESETTING TIME

0.1 SEC MAX

LIFE:

MECHANICAL - 5 X 106 TIMES

ELECTRICAL - 2 X 105  TIMES

POWER CONSUMPTION:

2VA
