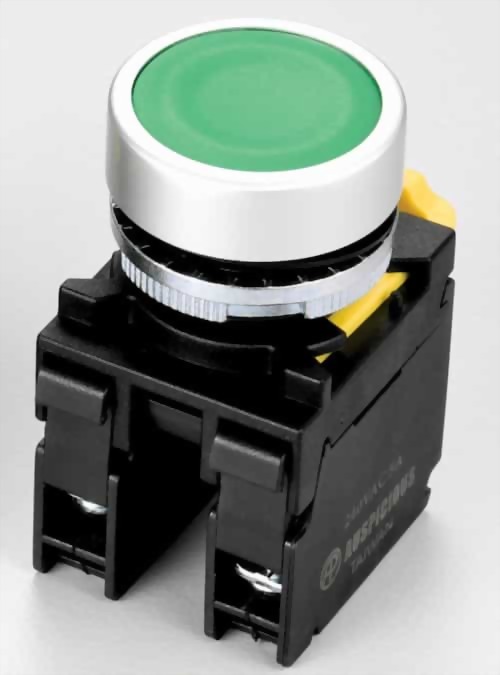

• Pushbutton Switches A2MRF

Pushbutton Switches A2MRF

Rating:
Thermal current Ith 10A 50/60Hz
Insulation voltage Ui 600V
Enclosed thermal current Ith 10A
Short-circuit current 1000A
AC-15 120V 6A, 240V 3A
AC-12 480V 1.5A, 600V 1.2A
DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A
Ambient temperature: -20℃ to 60℃
Contact resistance: 50mΩ max (initial)
Model : A2MRF

Rating:

Thermal current Ith 10A 50/60Hz

Insulation voltage Ui 600V

Enclosed thermal current Ith 10A

Short-circuit current 1000A

AC-15 120V 6A, 240V 3A

AC-12 480V 1.5A, 600V 1.2A

DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A

Ambient temperature: -20℃ to 60

Contact resistance: 50mΩ max (initial)


Mounting hole:  22mmφ


Type of contact:  N/O, N/C, N/O + N/C


Lens color:  Red, Green, Yellow, Blue, Black, White


IP Rating:  IP65


Mechanical life:

Actuator: 1 million operations

Contact block: 1 million operations


Approvals:  CE
