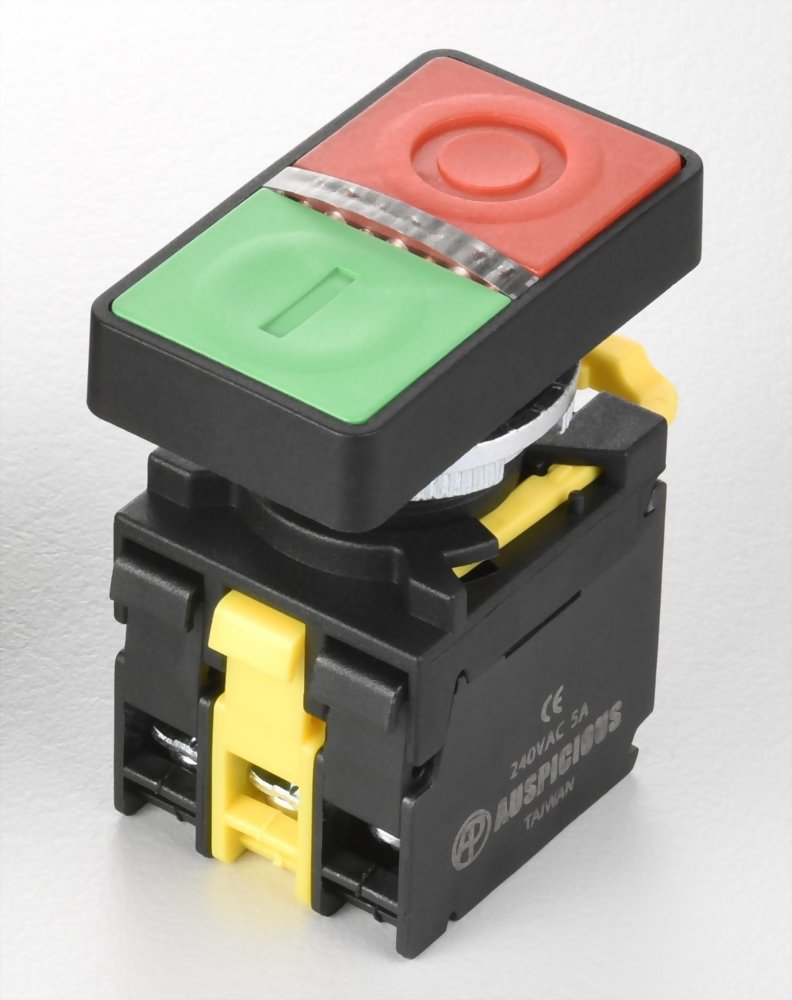

Illuminated Double Push Button Switches
Model :
A2RDBFL11
Rating:
Thermal current Ith 10A 50/60Hz
Insulation voltage Ui 600V
Enclosed thermal current Ith 10A
Short-circuit current 1000A
AC-15 120V 6A, 240V 3A
AC-12 480V 1.5A, 600V 1.2A
DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A
Ambient temperature: -20℃ to 60℃
Contact resistance: 50mΩ max (initial)
