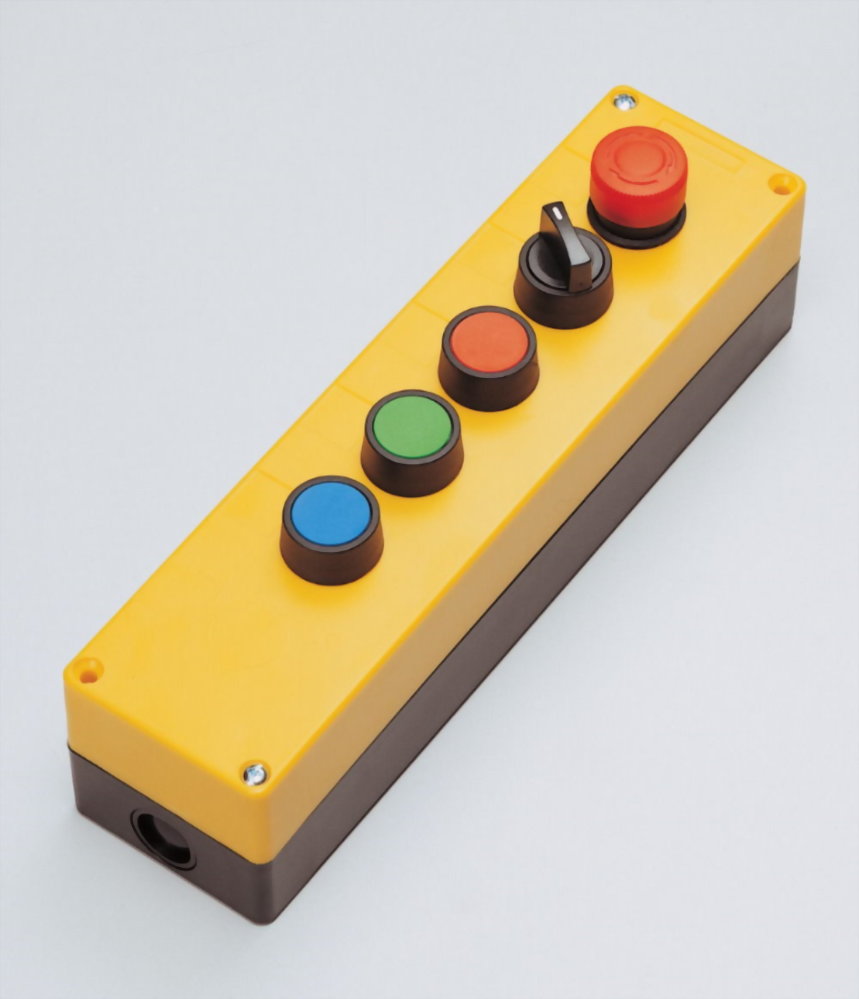

Control Station B5-ECS-3O3C

Product: LMS22-1C & CS22-1O & PBF22-1C & PBF22-1O & PBF22-1OC with 6 - hole enclosure

Rating:

Thermal current Ith 10A 50/60Hz

Insulation voltage Ui 600V

Enclosed thermal current Ith 10A

Short-circuit current 1000A

AC-15 120V 6A, 240V 3A

AC-12 480V 1.5A, 600V 1.2A

DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A

Ambient temperature: -20℃ to 60℃

Contact resistance: 50mΩ max (initial)

IP Rating:  IP65
