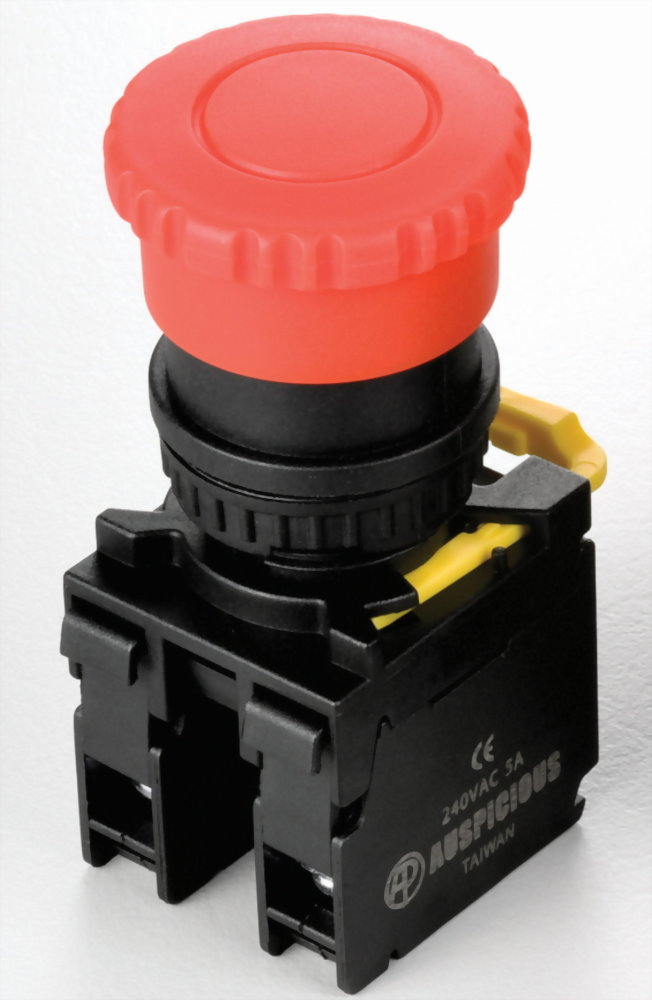

Pushbutton Switches A2PMS

Rating:

Thermal current Ith 10A 50/60Hz

Insulation voltage Ui 600V

Enclosed thermal current Ith 10A

Short-circuit current 1000A

AC-15 120V 6A, 240V 3A

AC-12 480V 1.5A, 600V 1.2A

DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A

Ambient temperature: -20℃ to 60℃

Contact resistance: 50mΩ max (initial)

Mounting hole:  22mmφ

Type of contact:  N/O, N/C, N/O + N/C

Lens color:  Red, Green, Yellow, Blue, Black, White

IP Rating:  IP65

Mechanical life:

Actuator: 1 million operations

Contact block: 1 million operations

Approvals:  CE
