Illuminated Selector Switches SRL30-2O
Thermal current Ith 10A 50/60Hz
Insulation voltage Ui 600V
Enclosed thermal current Ith 10A
Short-circuit current 1000A
AC-15 120V 6A, 240V 3A
AC-12 480V 1.5A, 600V 1.2A
DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A
Ambient temperature: -20℃ to 60℃
Contact resistance: 50mΩ max (initial)
Rating:
Thermal current Ith 10A 50/60Hz
Insulation voltage Ui 600V
Enclosed thermal current Ith 10A
Short-circuit current 1000A
AC-15 120V 6A, 240V 3A
AC-12 480V 1.5A, 600V 1.2A
DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A
Ambient temperature: -20℃ to 60℃
Contact resistance: 50mΩ max (initial)

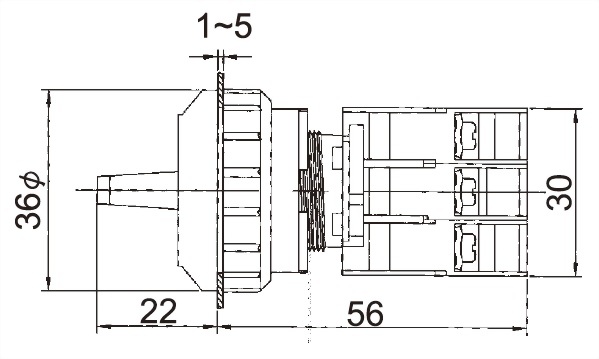

Mounting hole: 22mm/30mmφ
Lamp Voltage: 6V, 12V, 24V, 110V, 220V, 380V, 440V
Position: 2/3 Position, 2/3 Position spring return, 3 Position spring return on one side
Type of contact: N/O, N/C, N/O + N/C
Lens color: Red, Green, Yellow, Blue, White
Bulb type: LED, Filament bulb, Neon lamp
IP Rating: IP65
Mechanical life:
Actuator: 600,000 operations
Contact block: 1 million operations
